Description:

Specifications

• Engine mount made of glass nylon

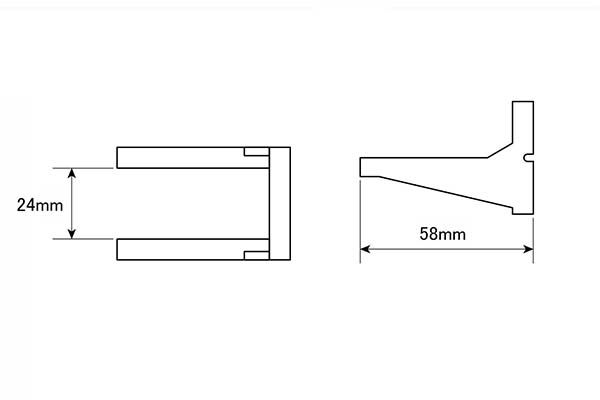

• Beam interval 24 mm
• Distance from fuselage frame to mount tip 58 mm

Note

• Because the PILOT resin mount has elasticity, even if the crankcase width of the engine is smaller than the mount width of PILOT resin by about 2 mm, it can be used by matching the width by holding the beam of the engine mount inside. Also, if the crankcase width of the engine is larger than the PILOT resin mount width by about 2 mm, please scrape the part where the engine mount crankcase hits obliquely.

• When installing the engine on PILOT resin engine mount, please use tapping screw. When mounting the engine with screws / nuts, the engine mount may be cracked.
  For example, when stopping the engine with a 3 mm tapping screw, after determining the engine mounting position, open a hole in the mount with a 2.5 mm drill and attach the engine with a 3 x 16 mm tapping screw.
