Description:
Specifications
| Displacement |
20.1cc |
| Bore x Stroke |
32 mm x 25 mm |
| Compression ratio |
10.5:1 |
| Fuel |
2-cycle mixed gasoline |
| Recommended Oil |
Shell Advance VSX 2 |
| Oil mixing ratio |
30:1 (volume ratio) |
| Compatible plug |
DLE DCM 6 |
| Compatiblepropeller |
APC 14x10, 15x8, 16x6, 16x8,
RL wooden propeller 17x8 |
| Output |
2.5 H P / 9000 rpm |
| Idling |
1700 rpm |
| Ignition method |
CDI electronic type
(with automatic advance-angle adjustment function) |
| CDI unit model |
|
| CDI unit operating voltage |
4.8 V ~ 8.4 V |
| Weight |
Body 665 g
Exhaust adapter (includes teflon pipe) 75 g
CDI ignition unit 115 g |

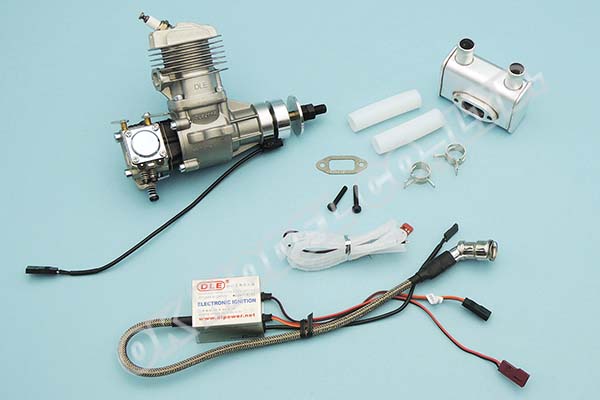

Included
- Electronic CDI ignition unit complete (compatible with 8.4V high voltage)
- Spark plug
- Exhaust pipe
- Teflon extension pipe
- Pipe clip
- Wiring goods
- Instruction manual in Japanese
- Product control card
*It will be required when repairing/inquirying. Please keep it safe.
OK MODEL is an authorized distributor of DLE in Japan.
