Description:

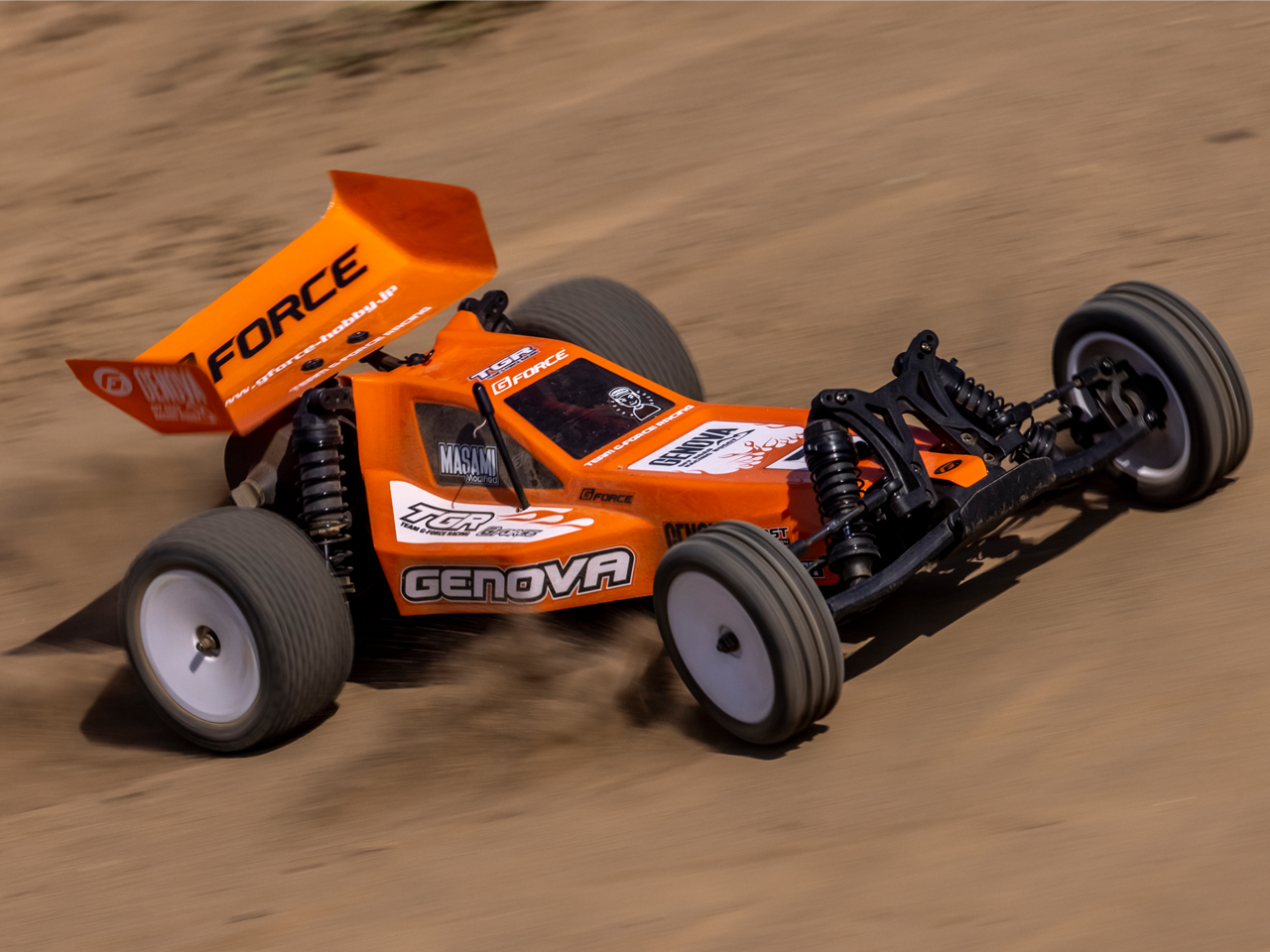

A traditional rear motor layout is used to ensure maximum traction in off-road driving, which is the starting point of buggies. G-FORCE's first assembled R/C car kit "GENOVA" offers outstanding traction performance and dynamic performance regardless of the road surface. The outstanding traction provided by the rear motor, combined with the long 292mm wheelbase, allows the driver to enjoy a heart-pounding ride. Masami Hirosaka was in charge of the basic body design. The form is reminiscent of the era and gives form to the longing of R/C boys of the past. Not only is the body dynamic, but it also demonstrates high performance on all surfaces, with big bore oil dampers, long-span suspension arms, fully adjustable rods, and other basic modern baby carriage performance and features. The diffs, dampers, and other difficult and time-consuming parts are factory-assembled. Even inexperienced builders can assemble it quickly and easily. The design, layout, running performance, and all the parts that make up the chassis are true "THE BUGGY"!
Product Features:
All-metal gears are used in the drive train
Full bearing specification
Wheels are the trendy 2.2-inch size with hex wheel hubs and are not bonded, so you can install the inner wheels and tires of your choice.
Spur gear covers are standard equipment.
The slipper clutch is a separate type for easy spur gear replacement
Universal joints are standard.
Pre-assembled big bore shocks are ready to use once oil is added.
Turnbuckles for adjustable camber and toe-in are standard on the suspension
Nostalgic-looking body and wing were completed under the thorough supervision of Masami Hirosaka.
R/C system and battery are sold separately
Technical data:
Overall length |
405mm(including wing/tire) |
Tire Diameter (Rear) |
diameter86mm,width42.1mm |
Overall width (Front) |
248mm |
Wheel(adhesive surface) |
56mm/2.2inch |
Overall width (Rear) |
245mm |
Weight |
1035g(without mechanism)approx.1400g(fully equipped) |
Overall Height |
165mm(including wing) |
Motor |
540size |
Wheelbase |
292mm |
Spur Gear |
80T |
Tire (Front) |
Rib Type |
Pinion Gear |
23T |
Tire (Rear) |
Block Type |
Gear Ratio |
8.39:1 |
Tire Diameter (Front) |
diameter81mm,width 27.2mm |
|
|
Separate items required for assembly and running:
-2-channel transmitter (radio system)
-Transmitter battery
-Receiver
-Steering servo
-ESC (speed controller)
-Running battery (standard size specification): 7.2V NiMH/7.4V LiPo/6.6V Rife
-540 size motor
-Power battery charger
-Body paint Tools (paint for polycarbonate)
-Tools, etc. (large and small Phillips screwdrivers, radio pliers, scissors for cutting body, wing and decals, cutter knife, reamer for drilling body holes, instant glue for attaching tires)
